Features:

·     Natural convection method that causes no scattering even when powders or light matters are put in chamber.　

·     Color LCD excellent in visibility leading to improved operability.　

·     Adopts dual display method for easy confirmation of measured values and set values as well as temperature display for overheat protection.　

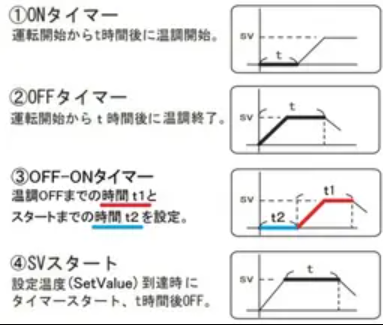

·     Provides 4-types of timer function (ON, OFF, ON/OFF, SV start) as standard. User can select optimum timer according to amount/dimensions of sample.　

·     Temperature is controlled by PID control that ensures high accuracy and stable temperature control.　

·     Provided with key lock for improved security.

Specifications:

Capacity: 91L

Inner size: 450 x 430 x 450 mm

Temperature control range: RT+20 to 300°C

Maximum temperature arrival time: About 60 minutes

Temperature distribution width: 25°C (at 300°C)

Temperature control system: PID control and SSR output

Addition function: program function with timer (ON timer, OFF timer, SV start / OFF timer) program, 8 step 4 pattern.

Safety device: Independent overrise prevention device (Operating temperature digital setting) and overcurrent breaker burnout mechanism (heater off when sensor disconnects)

Heater capacity: 1400 W

Temperature sensor / overheating prevention sensor: K class thermocouple

Shelf board Load tolerance: 5 kg

Shelf: 2 pcs

Outlet: φ 32 mm x 2 pieces

Exterior material: Steel powder coating

Exterior material: Stainless steel (SUS304)

External dimension: 550 x 540 x 785 mm

Weight: About 40 kg

Rated current: 14.5 A

Power supply: AC220V 50Hz. Cable length 2 m (3P Plug)

Accessories: 2 shelf board 2 pieces shelf board rails
