Features:

·       Professional portable conductivity meter for Conductivity, TDS, Salinity, Temperature measurement.

·       Innovative high-resolution color display.

·       The guide onboard in setup and calibration mode allows a simple and intuitive use of the device.

·       Automatic calibration of conductivity up to 5 points and 1 point custom defined by the user.

·       Adjustable reference temperature and selectable cell constant.

·       Indication with icons of the calibrated points.

·       Measurement stability indicator and possibility of selecting 3 levels of stability.

·       All operations and errors are constantly monitored and shown to the operator via the colored LED above the display.

·       GLP functions: Date and time, recall of calibration data and function “Calibration due”.

·       Data logger up to 1000 datas, automatic and manual,

·       PC connects via micro-USB.

·       Data software can freely downloadable from website.

·       The software allows remote control of the instrument in measure mode, shows all information relating to the instrument and calibrations, data export at the end of the analysis, (also in Excel and PDF format), and the display of measurements in the table and in graphic.

Specifications:

Measuring Range:

Conductivity: 0 to 200 mS

TDS: 0.1mg/L to 200 g/L

Salinity: 0.1 ppm to 100 ppt

Temperature: -10 to 110 ⁰C

Accuracy:

Conductivity: ±2% f.s

Temperature: ±0.5 ⁰C

Resolution:

Conductivity: 0.01-0.1-1 µS

Temperature: 0.1 ⁰C

Others:

Calibration points: 1 to 5 Auto + 1 custom

Buffer recognition:  84 μS - 147μS - 1413 μS – 12.88 mS – 111.8 mS

Reference temperature 15 to 30 °C

Temperature coefficient: 0.00 to 10.00 %

Calibration points indication: Yes

Buffer indication: Yes

Calibration report: Yes

Stability filter: Three point. Low, Nor, High

TDS Factor: 0.40 to 1.00

Temperature compensation: 0.0 to 100.0 °C

System: GLP - Yes

Calibration due: Yes

Internal memory: 1000 Data

Display: High definition backlight colored LCD

Brightness adjustment: Auto / Manual

IP protection: IP 54

Output: Micro USB and RS 232

Power supply: 3 AA Batteries, 1.5 V

Dimensions: 184 x 85 x 45 mm

Weight: 400 g

Conductivity cell

Model: 2301T

Country of origin: Switzerland

Working range: 10µS to 200 mS

C=1

Body in epoxy

Fixed cable 1 m

Built-in temperature sensor

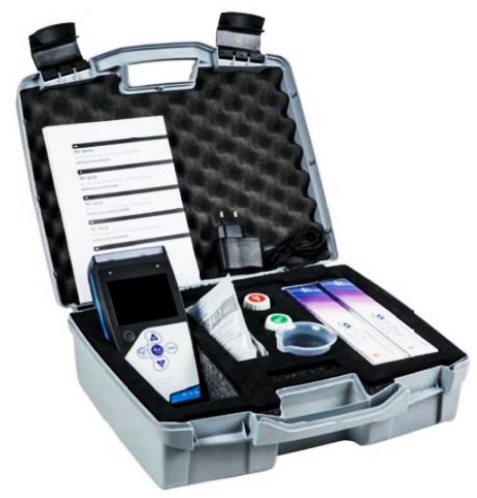

Accessories:

·      Conductivity cell 2301T integrated temperature sensor

·      Buffer solutions of conductivity

·      USB cable and power supply

·      Instructions for use

·      Plastic carrying case
